Axon-YL8K-Frame Coupler

A Frame Trailer Coupler Bolt On

● 2 Inch hitch ball

● Weld-On

● 8000 lbs capacity

● A- frame Coupler

A-Frame Trailer Coupler - Yoke Latch - 2" Ball - Weld On - 8,000 Lbs (Black Powder Coating)

● 2 Inch hitch ball

● Weld-On

● 8000 lbs capacity

● A- frame Coupler

● Yoke Latch

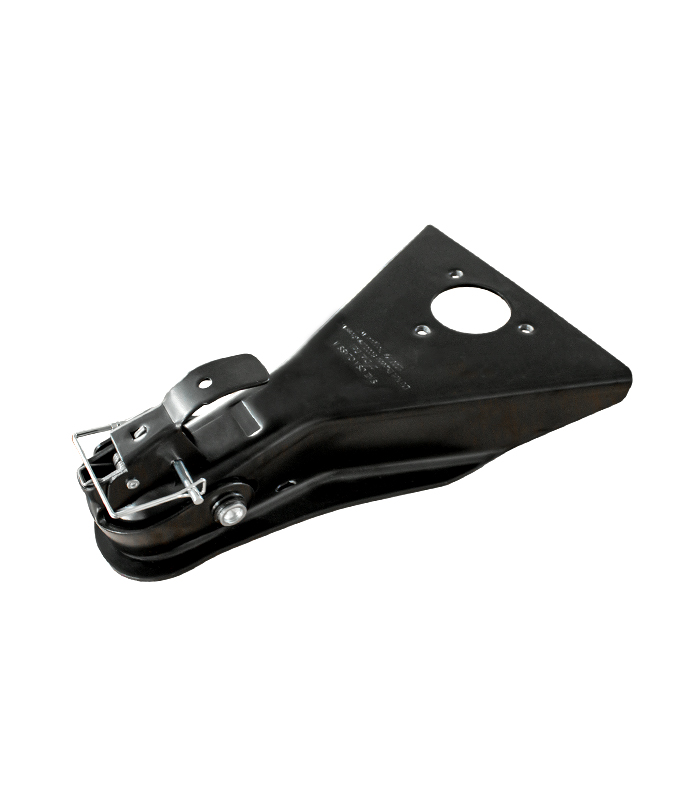

A-Frame Trailer Coupler - CA5210B

The design highlight of this coupler is the Yoke latch, which can open and close the ball by easily plucking the Yoke latch. Has a capacity of 8,000lbs, fits a 2” hitch ball. A frame mounting bracket designed to be welded to a triangle trailer chassis. Overall black powder coating for good corrosion resistance.

Features:

●A-frame coupler lets you hook up your trailer to your tow vehicle

●Yoke latch makes it easy to clamp around ball

oLift up and back on the latch to open

oPush forward and down to close

●High quality steel construction

●Overall Black powder coat finish

●Built-in jack-attachment point allows for quick installation.

●SAE J684 certified

●Weld-on installation

Specs:

●Ball size: 2"

●Jack hole dia.: 2-1/4"

●Overall dimensions: 13-3/4" long x 9-1/2" wide

●Pin hole diameter: 5/16"

oMinimum span needed for pin or pin lock: 1-1/4"

●Weight capacity: 8,000 lbs
